线宽窄(3KHz),功率和光谱稳定,模块/台式封装
光纤传感,激光种子源,非线性光学研究
光源激光器采用窄线宽DFB激光器,结合高性能硬件驱动电路,使激光器保持窄线宽,低噪声高性能稳定输出。

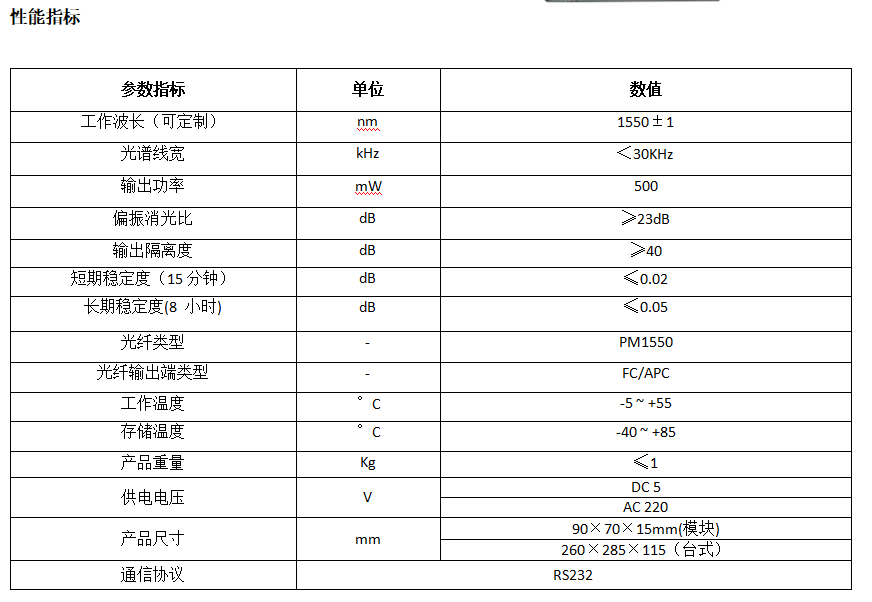

特性规格参数
参数指标 Parameters 单位 Unit 数值 Value 工作波长(可定制) Operating wavelength(Can be Customied) nm 1550±1 光谱线宽 Spectral linewidth kHz <30KHz 输出功率 Output power mW 500 偏振消光比 polarization extinction ratio dB ≥23dB 输出隔离度 Output Isolation Degree dB ≥40 短期稳定度(15分钟) Short-term stability(15min) dB ≤0.02 长期稳定度(8 小时) Long-term Stability(8 Hours) dB ≤0.05 光纤类型 Fiber Type - PM1550 光纤输出端类型 Type of optical fiber output end - FC/APC 工作温度 Operating Temperature °C -5 ~ +55 存储温度 Storage temperature °C -40 ~ +85 产品重量 Weight Kg ≤1 供电电压 Power supply voltage V DC 5 AC 220 产品尺寸 Size mm 90×70×15mm(模块) 90x70x15mm(Module) 260×285×115(台式) 260×285×115(Benchtop) 通信协议 Communication Protocol RS232 通信协议 Communication Protocol
尺寸图(模块/台式)

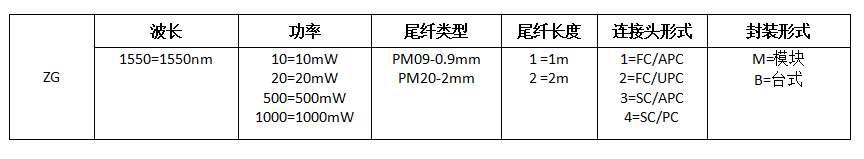

订货信息
波长 Wavelength | 功率 Power | 尾纤类型 Pigtal type | 尾纤长度 Fiber length | 连接头形式 Connector | 封装形式 Packaging type |
1550=1550nm
| 10=10mW 20=20mW 500=500mW 1000=1000mW | PM09-0.9mm PM20-2mm | 1 =1m 2 =2m | 1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/PC | M=模块 M=Module B=台式 B=Benchtop |
