高环境稳定性,低回反,低损耗
光纤实验用,激光束准直,光纤到光纤耦合

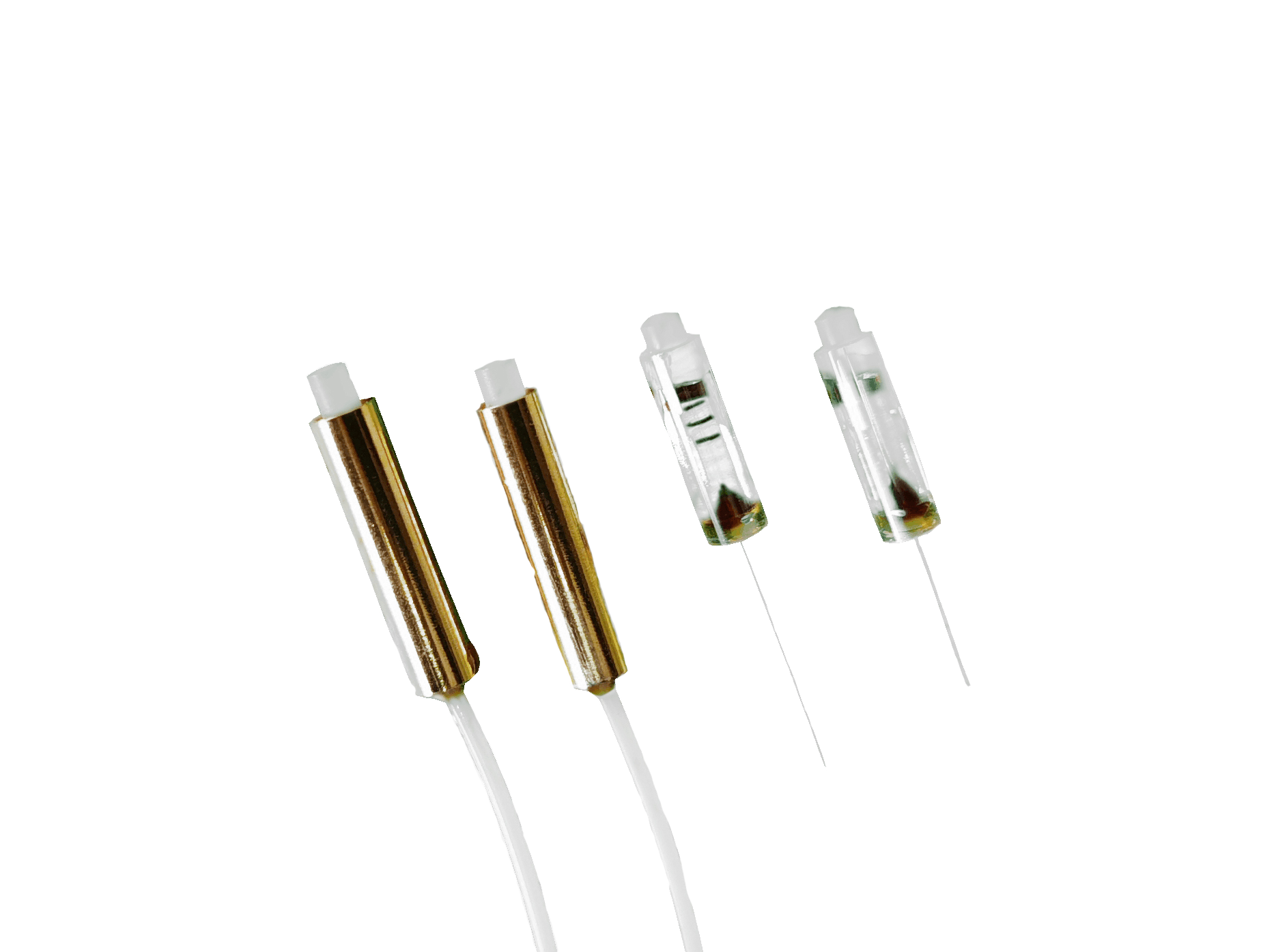

单纤/双纤准直器
低损耗
低回反
高环境稳定性
光纤实验用
激光束准直
光纤到光纤耦合

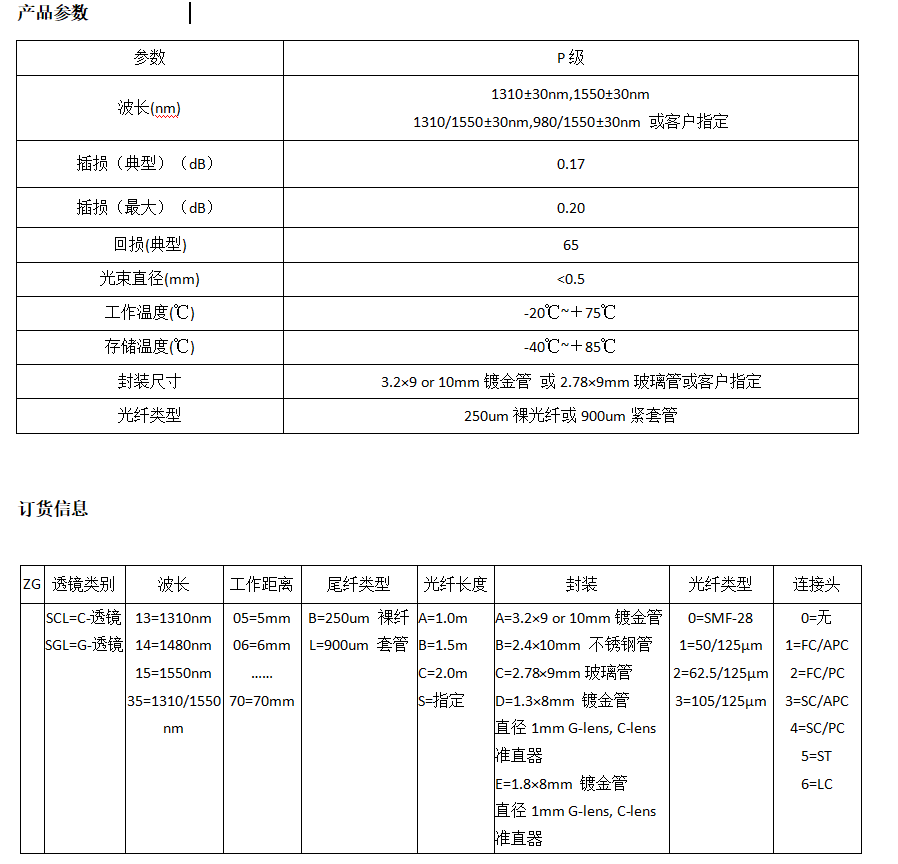

规格参数
参数 Parameter P级P stage 波长(nm) Wavelength(nm) 1310±30nm,1550±30nm 1310/1550±30nm,980/1550±30nm (或客户指定 or customized) 插损(典型)(dB) Insertion loss(Typical)(dB) 0.17 插损(最大)(dB) Insertion loss(Max)(dB) 0.20 回损(典型) Return loss(Typ) 65 光束直径(mm) Beam diameters (mm) <0.5 工作温度(℃) Operating temperature(℃) -20℃~+75℃ 存储温度(℃) Storage temperature(℃) -40℃~+85℃ 封装尺寸 Packaging size 3.2×9 or 10mm镀金管 或2.78×9mm玻璃管或客户指定 3.2×9 or 10mm Gold-plated or 2.78×9mm Glass tube or customized 光纤类型 Fiber type 250um裸光纤或900um紧套管 250um bare fiber or 900um tight casing
订购信息
透镜类别 Lens type 波长 Wavelength 工作距离 Working distance 尾纤类型 Pigtail type 光纤长度 Fiber length 封装 Packaging dimension 光纤类型 Fiber type 连接头 Connector SCL=C-Lens SGL=G-Lens 13=1310nm 14=1480nm 15=1550nm 35=1310/1550nm 05=5mm 06=6mm …… 70=70mm B=250um Bare fiber A=1.0m B=1.5m C=2.0m S=Can be customized A=3.2×9 or 10mm Gold-plated Stainless steel pipe Glass tube Gold-plated Gold-plated 0=SMF-28 1=50/125μm 2=62.5/125μm 3=105/125μm 0=No 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC
L=900um Casing
B=2.4×10mm
C=2.78×9mm
D=1.3×8mm
Diameter 1mm G-lens, C-lens Collimator
E=1.8×8mm
Diameter 1mm G-lens, C-lens Collimator
