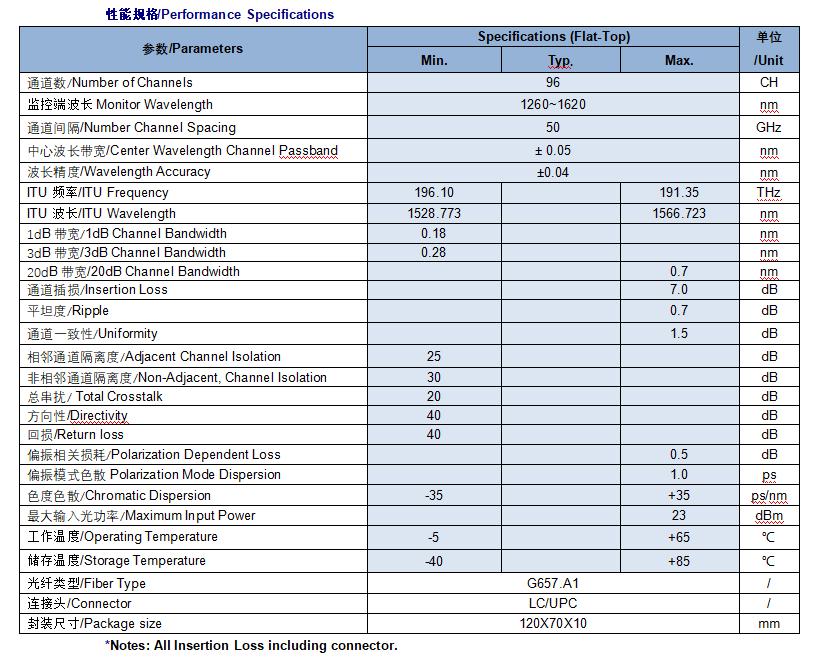

参数/Parameters

Specifications (Flat-Top)

单位/Unit

Min.

Max.

通道数/Number of Channels

96

CH

监控端波长Monitor Wavelength

1260~1620

nm

通道间隔/Number Channel Spacing

50

GHz

中心波长带宽/Center Wavelength Channel Passband

± 0.05

nm

波长精度/Wavelength Accuracy

±0.04

nm

ITU频率/ITU Frequency

196.10

191.35

THz

ITU波长/ITU Wavelength

1528.773

1566.723

nm

1dB带宽/1dB Channel Bandwidth

0.18

nm

3dB带宽/3dB Channel Bandwidth

0.28

nm

20dB带宽/20dB Channel Bandwidth

0.7

nm

通道插损/Insertion Loss

7.0

dB

平坦度/Ripple

0.7

dB

通道一致性/Uniformity

1.5

dB

相邻通道隔离度/Adjacent Channel Isolation

25

dB

非相邻通道隔离度/Non-Adjacent, Channel Isolation

30

dB

总串扰/ Total Crosstalk

20

dB

方向性/Directivity

40

dB

回损/Return loss

40

dB

偏振相关损耗/Polarization Dependent Loss

0.5

dB

偏振模式色散Polarization Mode Dispersion

1.0

ps

色度色散/Chromatic Dispersion

-35

+35

ps/nm

最大输入光功率/Maximum Input Power

23

dBm

工作温度/Operating Temperature

-5

+65

℃

储存温度/Storage Temperature

-40

+85

℃

光纤类型/Fiber Type

G657.A1

/

连接头/Connector

LC/UPC

/

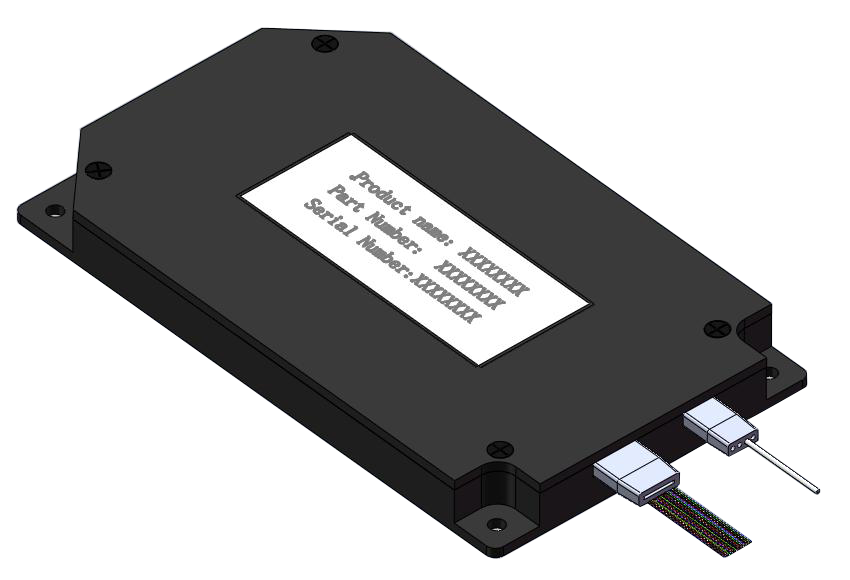

封装尺寸/Package size

120X70X10

mm

AWG

X

XX

X

XXX

X

X

X

XX

Band

Number of Channels

Spacing

1st Channel

Filter Shape

Package

Fiber Length

In/Out Connector

C=C-Band

L=L-Band

D=C+L-Band

X=Customize

16=16-CH

30=30-CH

40=40-CH

48=48-CH

XX=Special

1=100G

2=200G

5=50G

X=Special

C60=C60

H59=H59

C59=C59

H58=H58

XXX=special

G=Gaussian

F=Flat Top

M=Module

R=Rack

X=Special

1=0.5m

2=1m

3=1.5m

4=2m

5=2.5m

6=3m

S=Specify

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=LC/APC

6=LC/PC

7=ST/UPC

S=Specify
